Empyre Elite XT Outdoor Wood
Gasification Furnace
With new clean burning technology, the Empyre Elite XT does
most of the work. When necessary, ash is easily swept from the
lower burn chamber into the furnace-wide ash pan. Splitting wood
is obsolete with a large firebox operating at its best with large
diameter logs a few inches shorter than the length of the firebox.
The outer Weather-Guard doors and wide interior firebox door
makes loading a quick, simple and safe process.
The Future of Wood Heating is Here
With new clean burning technology, the Empyre Elite XT does
most of the work. When necessary, ash is easily swept from the
lower burn chamber into the furnace-wide ash pan. Splitting wood
is obsolete with a large firebox operating at its best with large
diameter logs a few inches shorter than the length of the firebox.
The outer Weather-Guard doors and wide interior firebox door
makes loading a quick, simple and safe process.
The Empyre Elite XTs air curtain design allows for smoke free
loading. The Easy Flue design and the flue cleaning rod (included)
makes sweeping out the flues quick and simple. Built rugged for
all installations, the Empyre Elite XT is versatile and can be
easily integrated into practically any homes existing heating
system. It can be installed into a 6 chimney liner and connected
to an in-floor heating system or connected to duct work with a
water-to-air heat exchanger.

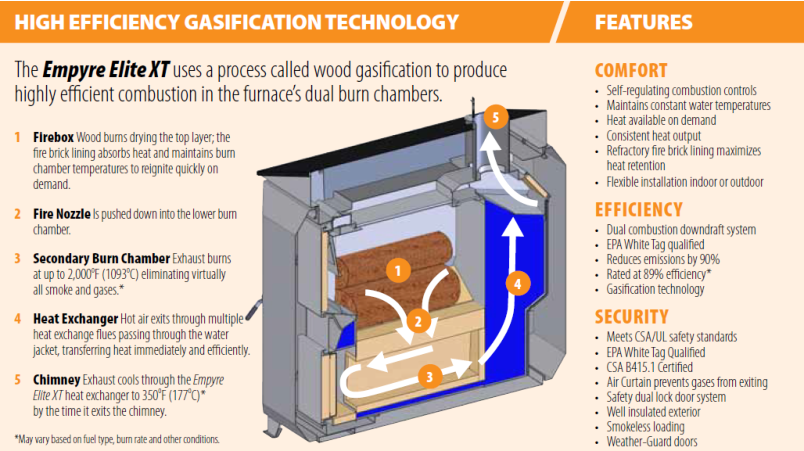

The Empyre Elite XTs high efficiency gasification technology
combined with a readily accessible and renewable fuel makes
wood the best heating choice.
2012 Vesta Award finalist Central Heating Systems
The Vesta Awards recognize and honor new alternative heating
and hearth products that lead the industry in design and
innovation. The Awards are presented annually at the Hearth,
Patio & Barbecue Expo by Hearth & Home Magazine. Due to its
unique gasification technology, low cost and simplicity of use the
Vesta judges have awarded the Empyre Elite XT for making wood
heat accessible to more homeowners than ever.

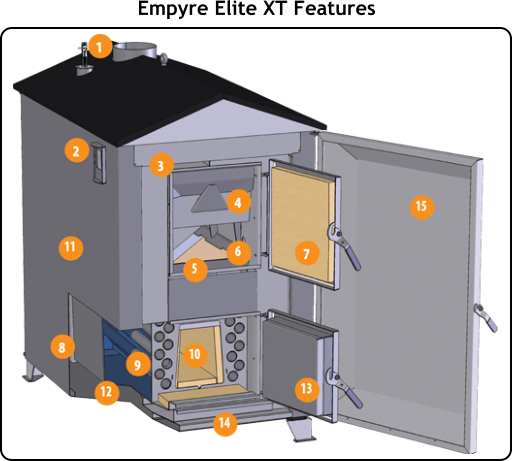

1 Water Level Indicator Monitor furnace water levels at a glance.
2 Temperature Control Set the furnace to maintain water
temperature at your desired level with the user friendly control
panel.
3 Smoke Free Loading Exhaust exit lever activates the
revolutionary air curtain and rear exhaust exit to direct exhaust
and gases out the chimney when the loading door is open.
4 Exhaust Curtain Keeps exhaust out of the room when loading;
the exhaust curtain swings inward for loading simplicity.
5 Fire Brick Refractory Stores heat in the firebox for hours,
reigniting the wood quickly on a demand for heat.
6 Primary Burn Chamber Wood in the sealed firebox burns
whenever air is introduced and does not smolder between cycles.
7 Loading Door Extra large size for ease of loading and heavy duty
construction for long life.
8 Premium Bat Insulation Will not oxidize or shrink; keeps heat
inside the furnace and the outside safe to touch.
9 Seamless Flues Transfer heat to the water jacket quickly and
efficiently; simple to clean from rear clean out port.
10 Secondary Burn Chamber Exhaust gases from the firebox are
injected with air and burn at up to 2,000F (1093C) to achieve
nearly 100% fuel combustion.
11 Durable Construction Solid steel with removable components
for simple installation.
12 Built-in Water Reservoir Stores heated water to heat your
home by a forced air or radiant heating system.
13 Ash Door Wide insulated door makes ash cleanup from the
gasification chamber and flues simple.
14 Ash Tray Easily dispose of ash with the removable slide out ash
tray.
15 Weather-Guard Doors Front and rear doors protect the unit
from the elements.
Applications
Home Heating
With versatile installation options the Empyre Elite XT can
connect to any existing home heating system. Enjoy low cost,
quality heat.
Radiant Heating
With hot water flowing through tubes in the floors of your house,
in-floor heating is the most efficient, consistent and comfortable
heat to enjoy.
Hot Water
Heat all of your hot water needs at the same time with the
Empyre Elite XTs multiple hookups. Hot water from the boiler
flows through a heat exchanger on an existing hot water heater.
Additional Applications
Provide heat for out buildings. Hot water can be pumped from the
boiler to forced air heaters on the ceiling, as well as into radiant
heating.
B415.1 Emission Standard
Burns Cleaner than required: Over 5 Times Cleaner
The stringent and highly recognized B415.1 emission standard is
required by CSA for many wood stove products. With a
commitment to deliver the best products into the marketplace,
Pro-Fab Industries works with several leading accredited testing
laboratories, which is a testament to the commitment made for
these testing protocols. The Empyre Elite XT 200 is EPA White Tag
Qualified, and in addition to EPA requirements, this highly
efficient wood gasification boiler has also been B415.1 tested. The
Empyre Elite XT 200 has surpassed the B415.1 emission standard
that represents true to life usage by burning cord wood versus crib
wood. The Empyre Elite XT 200 burns wood over 5 times cleaner
than is required and is rated at 0.071 g/MJ.
(g/MJ = grams per megajoule)

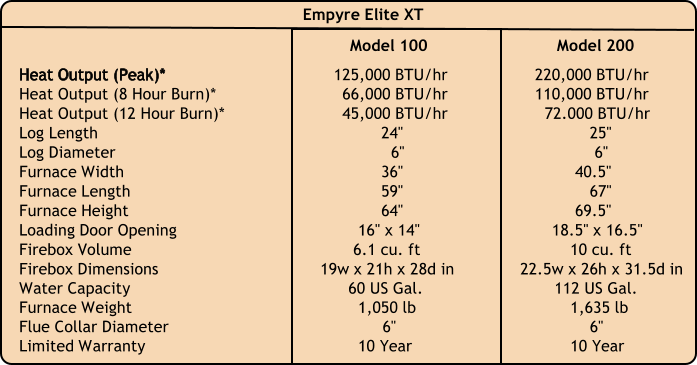

Specifications
*Results may vary based on fuel type, moisture and quality.
Product specifications and appearance subject to change.
Note that the Empyre Elite XT is a non-pressurized open hydronic system.
Empyre Elite XT
