Light Industrial Biomass Boiler
Biomass Boiler
How it Works

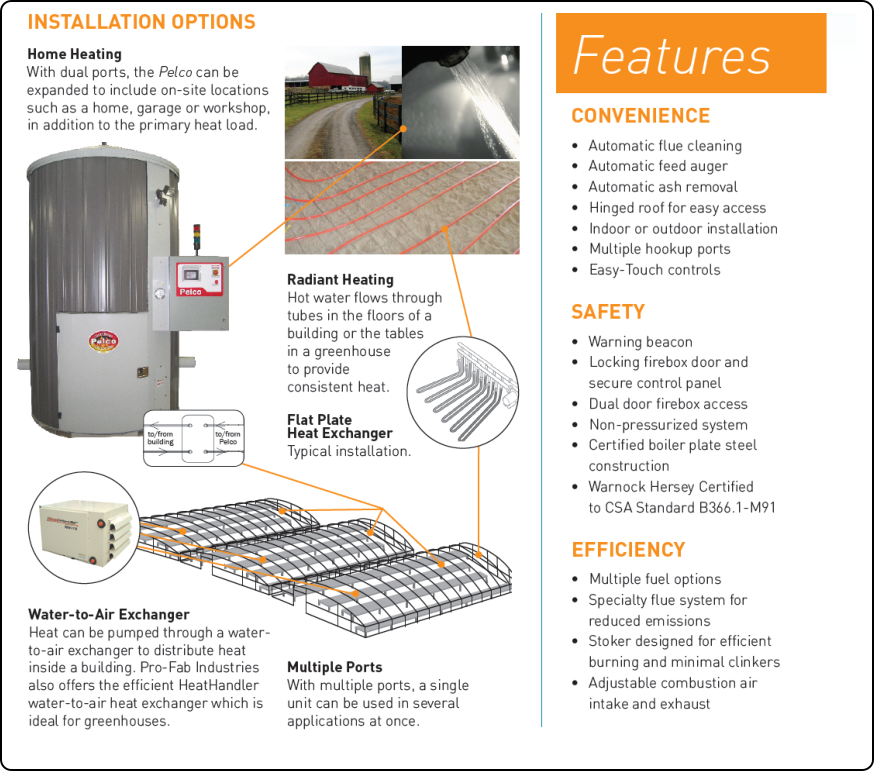

Pelco Biomass Boilers connect directly into
the existing heating system in your barn,
greenhouse, office, factory, home, shop,
or other building via a heat exchanger,
ideally through a flat plate heat exchanger

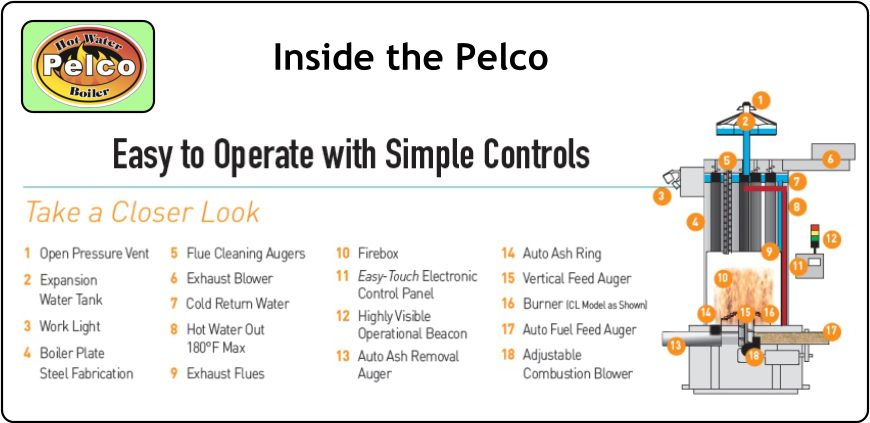

installed near the Pelco unit. The Pelco is
designed with a central firebox surrounded
by a large capacity water reserve. The
firebox and flue design provide maximum
surface area for the most efficient heat
transfer. After the water is heated, it is
channeled to your building’s heating system
through underground insulated pipes.
2013 Green Horizon Alternate Energy Solutions
FUEL COMPARISON
The Pelco Biomass Boiler is designed
to adapt to the ideal alternative
heating fuel for your application.
These are a few of the most common
fuels used in the Pelco:
Wood Pellets
Wood pellets are becoming more accessible in many parts
of the country and are a clean burning, cost effective fuel.
Ag Residue Cubes
Recycle agricultural waste and save money by heating with
pelletized oat hulls, wheat screenings or some grasses. In
some regions, corn is also a cost effective heating option.
Coal (Lignite/Sub-Bituminous)
Coal is easily found in many regions at a low cost.
Pelco’s clean burning technology makes coal a great
alternative to imported fossil fuels.
